Barge Design: How to Maintain Control & Propulsion Options to Consider

Barges may look simple on the surface, but anyone who’s operated one knows how challenging they can be to control. With large profiles, shallow drafts, and limited inherent maneuverability, barges respond more slowly than other ships and have a tendency to magnify environmental forces. That’s why smart barge design plays such a critical role in maintaining control, ensuring stability, and selecting propulsion systems that actually work in real-world conditions.

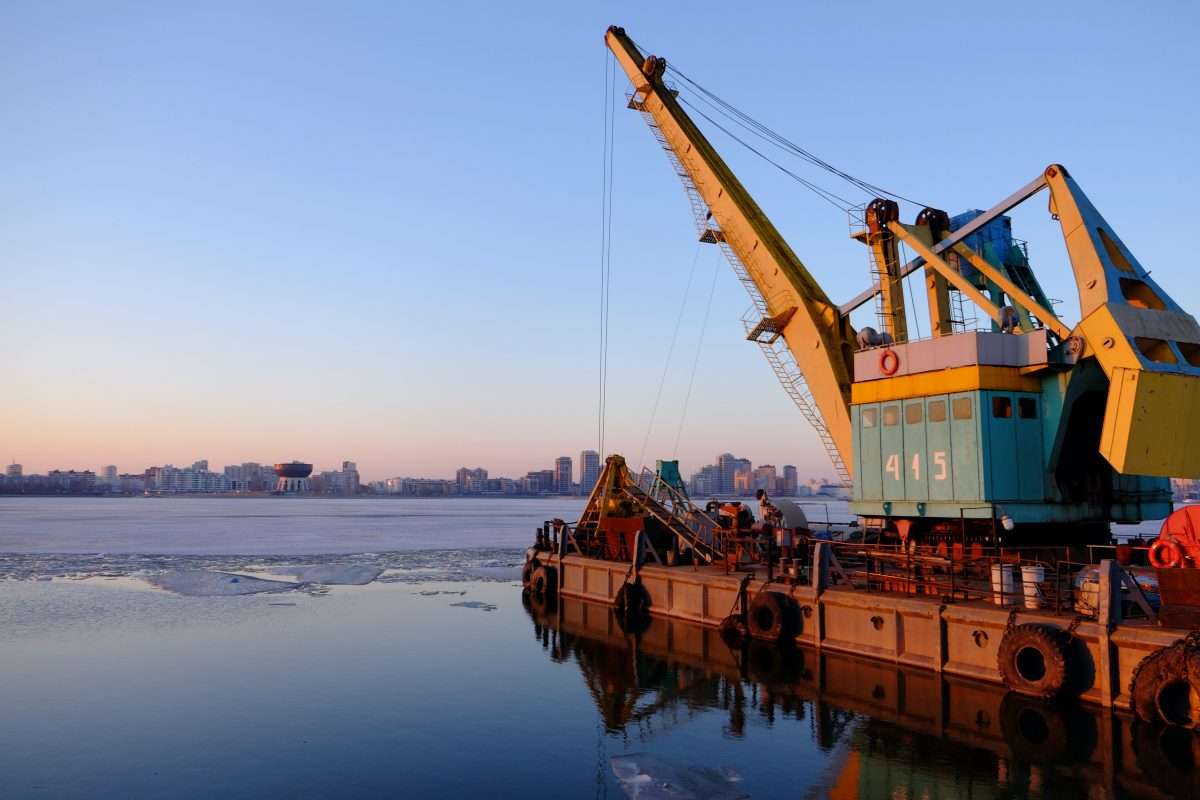

Whether you’re operating a construction barge, crane barge, or cargo platform, understanding how design choices affect barge stability, barge propulsion, and barge control can help you avoid costly problems and safer operations from day one.

Why Control Is the Core Challenge in Barge Design

Unlike self-propelled vessels, most barges aren’t designed to “drive” through the water. Their wide beams, flat bottoms, and large deck areas create high resistance to turning and stopping. Wind and current often have more influence on a barge’s movement than propulsion itself.

This creates a fundamental challenge in barge design. Control doesn’t come from speed or agility. It comes from predictability. Operators need to know how the barge will respond when pushed, pulled, or repositioned in tight waterways.

Poor barge control leads to delays, increased tug time, higher risk during mooring, and greater exposure during construction or cargo handling. That’s why control must be engineered into the vessel, not managed reactively on the water.

Directional Stability: The Real Control Challenge for Barges

When people hear the word “stability,” they often think about capsizing. For barges, that’s rarely the issue. Most barges have enormous hydrostatic stability compared to conventional ships. Even heavy cargoes like grain or aggregate don’t come close to tipping them over.

The real challenge is directional stability—how well a barge holds a straight course and resists being pushed sideways by wind and current.

Because barges are wide, shallow, and flat-bottomed, they naturally resist turning and lack the hydrodynamic features that help ships track smoothly through the water. Without careful design and operational planning, a barge can yaw, slide, or “hunt” under tow, requiring constant correction from the tug.

Directional stability doesn’t prevent capsizing. It prevents loss of control.

A barge with poor directional stability demands more tug power, more operator attention, and more time to maneuver safely—especially in confined waterways, near structures, or during precision operations.

Strong Doesn’t Mean Invulnerable: Understanding Real Barge Limits

Barges are built to carry massive loads, and that strength can sometimes create a false sense of security. Operators may assume that if the barge is floating, everything is fine. In reality, overloading and poor load distribution are far more common risks than loss of hydrostatic stability.

The biggest concerns in barge design and operation typically include:

Uneven load distribution: Concentrated loads can overstress localized structure, even when total weight appears acceptable.
Excessive total loading: Barges can float with enormous weight onboard, but that doesn’t mean the hull structure is designed to support it safely.
Tall or eccentric cargo: While rare, unusually tall loads can affect behavior and must be evaluated carefully.
Ballast mismanagement: Improper ballast use can increase structural stresses or reduce directional predictability.
Hull proportions and appendages: Skegs, keels, and hull geometry play a much larger role in tracking and control than hydrostatic stability ever will.

Barges are strong platforms, but they are still engineered systems with defined limits. Treating them as indestructible often leads to structural damage, inefficient operations, or loss of control—not capsize, but costly problems all the same.

By focusing on directional stability, load paths, and realistic operating conditions during design, operators get barges that behave predictably, tow cleanly, and stay controllable when it matters most.

Understanding Barge Propulsion Options

There’s no single propulsion system that works for every barge. The right solution depends on how the barge is used, how often it moves, and how precise positioning needs to be.

Tug-Assisted Barges

Traditional tug-and-barge configurations remain the most common approach.

This setup offers flexibility and simplicity. Barges can be moved by different tugs depending on availability and conditions, and onboard systems remain minimal. For many cargo and transport operations, this remains the most cost-effective option.

The downside is dependence. Control is only as good as the tug’s positioning and timing. In tight spaces or during stationary operations, control limitations become more apparent.

Integrated Propulsion Systems

Some barges include onboard engines or propulsion units that allow limited self-movement or enhanced positioning control.

Integrated barge propulsion can reduce reliance on external vessels, especially during short relocations or station-keeping operations. It can also improve safety during emergencies by providing immediate control authority.

However, onboard propulsion increases system complexity, maintenance requirements, and regulatory oversight. These tradeoffs must be evaluated carefully during the design phase.

Thrusters and Assist Systems

Thrusters are often the middle ground between tug-only operations and full propulsion.

Bow thrusters, stern thrusters, and azimuthing units provide lateral control without turning the barge into a fully self-propelled vessel. These systems are common on crane barges, dredging platforms, and construction barges where precise positioning matters.

When properly integrated into barge design, thrusters significantly improve barge control while keeping systems manageable.

Designing for Barge Control in Real-World Conditions

Environmental forces are amplified on barges. High windage areas catch gusts easily. Shallow drafts reduce directional stability. Currents can act across the full hull surface.

That’s why barge control needs to be addressed during design, not solved operationally later.

Engineering analysis helps predict how a barge will respond to wind, current, and propulsion forces before it’s built or modified. These insights allow designers to adjust hull proportions, ballast arrangements, and propulsion placement to improve controllability.

A barge that looks fine on paper can become a liability if real-world conditions weren’t considered early.

Choosing the Right Propulsion Strategy for Your Operation

Effective barge propulsion depends on how the vessel is actually used.

Key questions include:

Will the barge operate primarily in rivers, harbors, or offshore?
How often will it need to reposition independently?
Does the crew have experience maintaining propulsion systems?
Are regulatory requirements driving certain design decisions?

Overpowered systems don’t guarantee better control. In many cases, they add cost, weight, and maintenance without solving the underlying issue. The best barge design balances propulsion capability with stability, simplicity, and operational reality.

Struggling to balance barge stability, propulsion, and control for your operation? Explore how DMS approaches vessel design with real-world conditions in mind.

Explore Our Vessel Design Services

Common Mistakes in Barge Design That Reduce Control

Many control issues stem from design shortcuts rather than operational errors.

One frequent mistake is underestimating wind forces. Large deck equipment, cranes, or containers dramatically increase windage and can overwhelm propulsion systems if not accounted for.

Another is adding propulsion systems without reassessing stability. New engines, fuel tanks, or thrusters change weight distribution and can reduce stability margins if not modeled properly.

Finally, treating control as a crew problem instead of a design challenge leads to long-term inefficiencies. Operators can only work with what the vessel gives them.

How Smart Barge Design Improves Safety and Efficiency

Well-designed barges are easier to predict, easier to position, and safer to operate.

Improved barge control reduces tug time, lowers fuel consumption, and minimizes downtime during loading and construction activities. Crews spend less time fighting the vessel and more time completing the job.

From a safety standpoint, better stability and propulsion integration reduce the likelihood of breakaways, collisions, or loss of position during critical operations. Over a vessel’s lifespan, these benefits add up to measurable cost savings and reduced risk exposure.

Control Starts at the Design Table

Barge design decisions shape performance for decades. Stability, propulsion, and control are interconnected outcomes of early engineering choices. Addressing these factors during design or modification planning prevents reactive fixes later and creates vessels that work with operators instead of against them.

If you’re planning a new barge or modifying an existing one, reach out to our team to discuss how thoughtful design can make a measurable difference.
