How Do Anchors Work? The Truth About Anchoring Myths

Weight matters less than the chain, the rode, and the angle of pull between your boat and the seabed. Get those pieces wrong and even an oversized anchor will drag. This anchor guide breaks down what actually keeps a boat in place overnight, and where the “bigger is better” advice falls apart.

The Anchor Myth That’s Putting Boats at Risk

Ask ten boat owners what keeps their vessel from dragging overnight, and most will point to the anchor sitting on the bow. It’s the part you can see, touch, and buy a bigger version of, so it gets the credit. That instinct is understandable, but it’s also why so many boats drag in conditions their anchor was technically rated to handle.

An anchor by itself does very little. It needs the right amount of chain, the right length of rode, and the right angle of pull to do its job. A properly sized anchor paired with too little chain or too short a scope will drag just as easily as an undersized one, sometimes worse, because the operator assumes the anchor alone is doing all the work. The significance of the anchor only makes sense in the context of the full system it’s part of, not as an isolated purchase.

How Anchors Actually Work

An anchor system has three jobs happening at once: dig in, stay dug in, and keep the pulling force as horizontal as possible. Each piece of the system, the anchor, the chain, and the rode, handles a different part of that job.

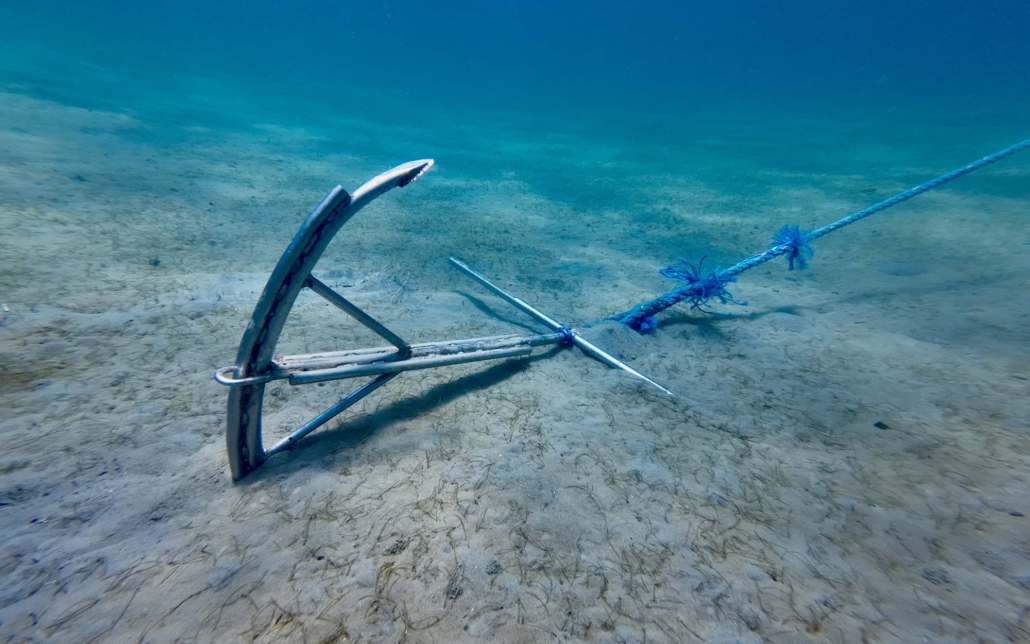

What the Anchor Itself Is Doing

The anchor’s flukes or plow are shaped to bite into the seabed and resist being pulled straight out. Different designs dig in differently depending on the bottom, sand, mud, grass, or rock, but nearly every anchor needs a low, mostly horizontal angle of pull to set properly and stay set. Pull straight up on most anchors and they break free almost immediately. That single principle forms most of the misunderstanding about anchors. We want them to break free with very little upwards pull. That’s how you retrieve the anchor. To keep the anchor holding, we need a horizontal force, not vertical. That single principle, explains most of what follows in this guide.

What the Chain and Rode Are Doing

This is where your chain earns its keep. A length of heavy chain lying between the boat and the anchor sags under its own weight, and that sag does two things: it absorbs shock loads from wave action before they reach the anchor, and it keeps the pull on the anchor closer to horizontal. A rope rode alone, with no chain, transmits load almost straight to the anchor with very little give, which is why all-chain or chain-plus-rope setups hold better than rope alone in most conditions.

Catenary: The Curve That Keeps Your Bow Down

Naval architects call the natural sag in a suspended chain “catenary,” and it’s the physical mechanism behind how anchors actually work once wind and current get involved. Two things happen as conditions build, and both determine how long your anchor holds.

How Sag Reduces Load on the Anchor

In calm to moderate conditions, the weight of the chain keeps a deep curve between your bow and the seabed. That curve acts like a shock absorber, and it keeps the angle of pull on the anchor low, which is exactly what most anchor designs need to stay buried. This is the mechanism behind the old rule that heavier chains hold better: more weight per foot means more sag, and more sag means a gentler, more horizontal pull.

When the Curve Disappears

The catenary effect has a limit. As wind speed climbs, the load on the rode increases faster than the chain’s weight can counteract it, and the curve pulls out until the chain runs nearly straight from bow to anchor. Ideally, we don’t want things to ever get this bad. But in the extreme, with wind speeds around 50 knots or more, we push past the limits of a catenary anchor chain. According to the Rocna Knowledge Base, once a rode is effectively straightened, the weight of the chain makes no further difference to holding power.

Now you depend on the anchor holding power, and the scope ratio you’ve let out decides if the anchor holds, or if your boat starts dragging. Even in extreme weather, the holding power of your anchor depends less on the anchor size. You need the scope that allows the anchor to work to its full capacity.

Different Types of Anchors and What Each Is Built For

No single anchor design works everywhere, so understanding the different types of anchors helps you match the tool to your actual bottom conditions.

Fluke-Style Anchors

Fluke or Danforth-style anchors use two flat, hinged blades that dig into sand or mud. They’re lightweight for their holding power and stow flat, which makes them a common choice on smaller boats. Their weakness shows up on rocky, weedy, or hard-packed bottoms, where the flukes can’t get a bite.

Plow and Scoop Anchors

Plow-style and modern scoop anchors, the shapes marketed under names like CQR, Rocna, or Spade, are built to reset themselves if the wind or current shifts and pulls the boat around. They tend to perform well across a wider range of bottom types, which is part of why they’ve become the default choice on most cruising boats built in the last two decades.

Mushroom and Permanent Mooring Anchors

Mushroom anchors work differently. Instead of digging in, they rely on suction and heavy weight settling into soft mud over time, which makes them useful for permanent moorings but a poor choice for a boat that needs to set and reset an anchor on a normal cruising schedule.

Picking the wrong anchor type for your bottom conditions is an easy mistake to make, and it shows up the first time a real blow rolls through.Datawave Marine Solutions applies the same engineering rigor to anchor and mooring system selection that we bring to hull and structural design work.

Schedule a Consultation

Getting Your Scope Ratio Right

Scope is the ratio between how much rode you’ve let out and the total depth from your bow to the seabed, water depth plus the height of your bow above the water.

The 5:1 to 7:1 Rule of Thumb

For an all-chain rode, most sources recommend a minimum of 5:1 scope in calm conditions and closer to 7:1 once wind or swell picks up. A rope-and-chain combination typically needs more, often 7:1 to 10:1, because rope alone has almost no weight to create catenary sag.

Why More Chain Isn’t the Same as More Safety

Adding weight to your chain without adjusting scope doesn’t fix a scope problem, and letting out more rode with a lighter but stronger chain often outperforms a heavier chain at a shorter scope. The real lever is the ratio, not the raw weight sitting in your anchor locker. This is also where a lot of boats get into trouble in crowded anchorages: shortening scope to avoid swinging into a neighbor reduces your holding power right when you can least afford it.

Why This Matters More as Vessels Get Bigger

The physics don’t change as a vessel gets larger, but the consequences of getting it wrong do. On a small recreational boat, dragging anchor usually means an uncomfortable night and possibly a scraped hull.

On a larger commercial vessel, a dragged anchor means an emergency, damage to surrounding port infrastructure, and lawsuits. In the worst case, it can even mean a sinking ship. This is why anchoring gets more technical for the big ships. We size against classification society requirements, deck equipment loads, and the vessel’s actual mission, not a rule of thumb pulled from a boating forum.

Understanding how an anchor works on a ship at that scale means accounting for windage, current loads specific to the vessel’s operating area, chain grade and diameter rated for the anticipated forces, and how the windlass and deck structure are engineered to handle those loads without damage. This is naval architecture work, not gear shopping..

When anchoring becomes safety critical for commercial ships, we turn to mooring studies. DMS can model the exact anchor chain for your ship and simulate how that anchor system behaves in a storm. We simulate your ship, the anchor system, the wind, waves . . . we can even include dynamic winches. This simulation yields exact forces at each point on the anchor system and a predicted environmental limit for your ship.

These simulations become essential for vessels like floating oil production and storage (FPSO) and floating oil rigs. The large ships use complicated spread mooring systems that combine multiple anchors, ready to permanently stay on station. When your ship costs over a hundred million dollars, you need the reassurance that it stays in place. Talk to DMS to learn more about simulations for spread mooring.

Give Your Anchor System the Same Engineering Attention as the Rest of Your Vessel

Once you understand how anchors actually work as a complete system, the idea that a bigger anchor alone keeps you safe stops holding up. The chain, the rode, and the scope ratio you set every time you drop anchor determine whether that rating actually holds up in real conditions.

Getting all three pieces right is what separates a boat that rides out a squall from one that drags into the boat next to it.

If you’re sizing ground tackle for a new build, moving a vessel from recreational to commercial service, or just want a second opinion on your current setup, reach out and let’s talk through what your vessel actually needs.
